l Micro-controlled solid state flasher l Rated for over 100,000 hours of use l Protected against moisture and contaminates l Protected against voltage spikes l High impact resistant polycarbonate housing l Vibration resistant LED technology l Ideal for police, fire, construction, utility, DOT and municipal vehicles l Two selectable warning flash patterns: Alternating or Random l 0.8 amp draw at 12 VDC l Colors: Amber, Red, Blue l Dimensions: LDH396 - 2 1/2"L x 6 1/2"W x 3 1/2"H LDH395 - 2 1/2"L x 5"W x 2 3/4"H l Kit includes: (1) set of 2 LED heads with mounting brackets ( One master unit with flasher and one slave unit), (1) SP3860-LDF switch panel and instructions.

SP3860-2 LDK395 Kit Amber/Amber $ 155.50 Amber/Red $ 161.50 Red/Red $ 167.50 Amber/Blue $ 184.00 Red/Blue $ 190.00 Blue/Blue $ 212.50 LDK396 Kit Amber/Amber, Amber/Red or Red/Red $ 404.50 Amber/Blue or Red/Blue $ 436.00 Blue/Blue $ 467.50

Kit Pricing: Amber / Amber, Amber / Red or Red / Red $ 150.00 Amber / Blue, Red / Blue, Amber / Clear or Red / Clear $ 190.80 Blue / Blue, Clear / Red or Blue / Clear $ 236.70 Head Pricing: Amber or Red $ 76.00 Blue or Clear $ 122.00

Kit Model LDHEF-3K(with Built in Flasher) l Random or alternating selectable flash sequence l "Potted", solid state components - rated for over 100,000 hours of use l Extremely low amp draw - less than 0.8 amps l Protected against moisture, contaminates and voltage spikes l High impact resistant PAR 36 rubber housing l Meets SAE J1318 and J845 l Ideal for fire, police, construction, utility, DOT and municipal vehicles l 12/24 VDC, 72 flashes per minute (Quint) l Dimensions: 4 3/4" D x 2 1/2" L l Kit includes: (2) LDHEF-3 LED heads with mounting brackets and instructions l Colors: Red Amber Clear Blue

Amber, Red or Red/Amber Price: $ 160.50 Green or Blue Price: $ 175.50 Red/Blue, Red/White or Amber/Blue Price: $ 168.00

Amber, Red or Red/Amber Price: $ 184.50 Green or Blue Price: $ 199.50 Red/Blue, Red/White or Amber/Blue Price: $ 192.00

Amber, Red or Red/Amber Price: $ 292.50 Green or Blue Price: $ 322.50 Red/Blue, Red/White or Amber/Blue Price: $ 307.50

Amber, Red or Amber/Red Price: $171.95 Clear, Blue, Green or Combination Price: $186.95 1/2 Amber or Red and 1/2 Clear, Blue or Green  Price: $179.50

Starburst DLX3 Weather resistant housing Interior or exterior mounting High intensity, STAR Generation-3 LEDs Synchronizing capability Reverse polarity protection Current limit protection over entire operating voltage 6 Customer selectable flash patterns including a Steady-On (11 Customer selectable flash patterns including a Steady-On when two DLX3s are synchronized) Selectable Day/Night mode 3’ – Five conductor wire harness Dimensions: 1-3/16” H x 4” W x 2” D Voltage: 10V - 16V DC Amp Draw: Less than 1 Amp Approvals*: SAE J595, SAE J1318, and California Title 13 for RED and BLUE (*When two DLX3’s are used as a pair) Colors: Amber, Blue, Red, White, Green

The STARBURST DLX3 series LED auxiliary light is a small and powerful weather resistant package perfect for mounting on motorcycle saddlebags, in trunks, on vehicle fenders, mirrors, or any place a small intense LED light is needed. Using STAR generation-3 LEDs it has current limit protection over the entire operating voltage and reverse polarity protection gives you worry free operation. The STARBURST DLX3 is offered in a variety of colors and they can be synchronized with other STARBURST DLX3s. High/Low power select and 11 different customer selectable flash patterns are available, including a Steady On, for many customized possibilities. Ships complete with five 3' attached wires, gasket, and instructions.

274-DLX3D	274-DLX3RL	274-DLX3T	274-DLX3U	274-DLX3W
Deck Mount	License Plate Mount	Inside Trunk Mount	Standard "L" Bracket Mount	Pickup Rear (Flat Glass) Mount
274-DLX3-2X1	274-DLX3-1X2
Stack Mount	Side By Side Mount

Only ½” thick! Weather resistant housing Fully encapsulated circuitry Interior or exterior surface mounting or with optional mounting brackets Available with Black or Chrome bezels (Order DLXT1X5-*1C or DLXT1X5-*4C for LED Light with Chrome Bezel) High intensity, PLCC4 LEDs Synchronizing capability (will also synchronize with STAR DLX3 Auxiliary LED lights or other STAR LED units) Reverse polarity protection Current limit protection over entire operating voltage 11 Customer selectable flash patterns including a Steady-On (21 Customer selectable flash patterns including a Steady-On when two DLXTs are synchronized)

Dimensions: 2-1/4” H x 5-3/4” W x 1/2” D Voltage: 10V - 16V DC Amp Draw: Less than 1 Amp Colors: Amber, Blue, Green, Red, White Ships complete with mounting hardware, gaskets, and instructions

Shown with Black Bezel	Shown with Chrome Bezel

274-DLXT-RL License Plate Bracket	274-DLXT-U Universal Mount	274-DLXT-T Trunk Mount	274-DLXT-45 45 Degree Mount
274-DLXT-1X2 Side By Side Mount	274-DLXT-W Flat Glass Mount	274-DLXT-2X1 Stack Mount

VersaStar™ DLX4 Series & DLX6 Series are vesatile LED Warning Lights that are built with fully encapsulated circuitry and can be mounted just about anywhere, interior or exterior! DLX4s & DLX6s are the same size which allows for easy relocation or reconfiguration. The DLX4s are designed for flush or bracket mounting while the DLX6s are designed for bracket mounting only. The DLX6 also incorporates a heavy duty heat sink. Both series include the same snap on bezel or are available with flashback hoods that include either a cig plug adapter or with a 12' wire harness. These high intensity LED lights are reverse polarity protected and current limiting protection over the entire operating voltage is standard. S-LINK SYSTEM™ is also standard offering synchronizing capability with other STAR LED units along with 21 customer selectable flash patterns that give these LED lights versatility in the field. Optional mounting brackets are available. Ships complete with permanent mounting hardware, gaskets, and instructions

DLX4 DLX6

Product Features: DLX4 LED heads are designed for flush or bracket mounting DLX6 LED heads are designed for bracket mounting only DLX4 & DLX6 LED heads are the same size DLX4 & DLX6 LED heads are interior or exterior mount DLX6 LED heads incorporate a heavy duty heat sink Snap on, weather resistant bezels Flashback hoods available in DLX4 or DLX6 Series and are interior mount only S-LINK SYSTEM™ synchronizing capability with other STAR LED units Split color combinations available (excludes DLX4-HK2 & DLX6-HK2 Series) Fully encapsulated circuitry High intensity, STAR Generation-4 LEDs Reverse polarity protection Current limit protection over entire operating voltage 21 Customer selectable flash patterns; including Steady-On Dimensions: 1” H x 3-5/8” W x 3/4” D (DLX4 & DLX6) Voltage: 10V - 30V DC Amp Draw: DLX4: 0.7 Amps @ 12V DC, 0.3 Amps @ 24 V DC (max) Amp Draw: DLX6: 0.9 Amps @ 12V DC, 0.5 Amps @ 24V DC (max) Color Combinations: Amber/Amber, Blue/Blue, Green/Green, Red/Red, White/White, Amber/Blue, Amber/Red, Amber/White, Red/Blue, Red/White, Blue/White Approvals: DLX4: Class I, California Title 13 (Amber, Blue, Red, White) Approvals: DLX6: Class I, California Title 13 (Amber, Blue, Red, White, Red/Blue)

DL16 & DL16CV (Crown Victoria) 4 Head Price: $315.00 DL16V-6 & DL16V-6CV (Crown Victoria) 6 Head Price: $399.95

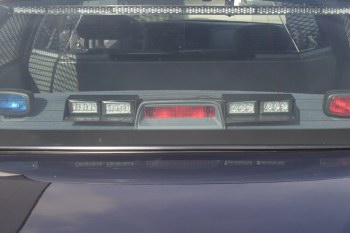

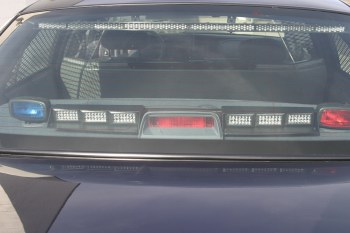

DL16V & DL16V-CV (Crown Victoria) 4 Head Price: $255.00 Interior mount only, to any vehicles rear window deck Specifically designed models are available for Ford Crown Victoria: DL16-CV, DL16V-CV, DL16V-6CV no drilling required! DL16 Series offers high intensity STAR Generation-3 LEDs DL16V Series offers standard LEDs Flashback protection hood Expandable up to 8-1/2” to fit around third brake light Height adjustable from 1/2” to 1-1/4” above rear deck Non-reflective powder coated aluminum housing 4 or 6 Synchronized flashing heads 35 Customer selectable flash patterns High/Low power select Current limit protection over entire operating voltage range 15’ Wire harness Reverse polarity protection Dimensions: 6-Head: 1-7/8”H x 14-5/16”L x 5-3/4”D Dimentions: 4-Head: 1-7/8”H x 20-1/2”L x 5-3/4”D Voltage: 10V-16V DC Weight: All less than 4 lbs. Amp draw: DL16V & DL16V-6: Less than 1.0 Amp draw: DL16:1.6 Amps Approvals: DL16 ONLY: SAE J595, SAE J1318, and California Title 13 for Red & Blue Color combinations: Red, Blue, Amber, Green, White

Model ULB9 Mini Phantom Undercover Interior LED Light Perfect for undercover or unmarked vehicle applications Extremely lightweight! For interior applications only Dash, Deck, Mirror, or Suction Cup mount Low profile – Less than 1” high Available in single or dual colors 57 long-life LEDs 24 customer selectable flash patterns via push button switch Dimensions: 15/16” H X 9” W X 1-3/8” D Voltage: 12V DC Weight: less than 1 lb. Amp draw: 1.2 Amps max Custom lighting color combinations available: Red, Blue, Amber, Green, White

	DL35-6 M-Tech Series Dash Light Specifications: Extremely wide light distribution Highly efficient optics Impact resistant housing Flashback hood Reverse polarity protection Voltage: 12V DC Light weight: less than 2 lbs. Color Combinations: Red, Blue, Amber, Green, White Ships Complete with mounting hardware and instructions
DL35-6: Cig Plug Adapter w/Lighted On/Off Switch 35 Customer Selectable Flash Patterns Flash Pattern Select Button Dual Color Availability Amp Draw: 0.4 Amps Dimentions: 2" H X 6" W X 5" D	DL35-6-1: 12' Cable Synchronizing Capabilities 4 Flash Phases 22 Customer Selectable Flash Patterns Flash Pattern Select Button Dual Color Availability Amp Draw: 0.4 Amps Dimentions: 2" H X 6" W X 5" D

	M-Tech DL35-12 Series Dash Light Specifications: Extremely wide light distribution Highly efficient optics Impact resistant housing Flashback hood Reverse polarity protection Voltage: 12V DC Light weight: less than 2 lbs. Color Combinations: Red, Blue, Amber, Green, White Ships Complete with mounting hardware and instructions
DL35-12: Cig Plug Adapter w/Lighted On/Off Switch 35 Customer Selectable Flash Patterns (two patterns keep RED side on steady to meet certain state requirements) Flash Pattern Select Button Single Color for Each Head Amp Draw: 0.8 Amps Dimentions: 2" H X 12" W X 5" D	DL35-12-1: 12' Cable Synchronizing Capabilities 4 Flash Phases 21 Customer Selectable Flash Patterns (two patterns keep RED side on steady to meet certain state requirements) Flash Pattern Select Button Single Color for Each Head Amp Draw: 0.8 Amps Dimentions: 2" H X 12" W X 5" D
	DL35-CV Extremely wide light distribution Highly efficient optics Impact resistant housing No drill mounting Quick and easy installation Flashback protection hood Reverse polarity protection Selectable Day/Night mode 15’ Wire harness Flash pattern select wire 35 Customer selectable flash patterns Dimensions: 3” H X 21” W X 7” D Voltage: 10V-16V DC Amp draw: 0.8 Amps
