Operating Temperature
|
-30 to 60 C
|
Operating Bandwidth - VHF/UHF
|
24Mhz/ 20 Mhz
|
Channel Increments
|
2.5/ 6.25 Khz
|
Channel Spacing
|
25 kHz/ 12.5 Khz
|
Frequency Stability
|
+/- 2.5PPM
|
Standbuy Current
|
20 mA
|
Battery Life
|
9 hours
|
Dimensions
|
5.5"H x 2.4"W x 1.4"D
|
Receiver:
|
Wide
|
Narrow
|
Transmitter:
|
Wide
|
Narrow
|
|
Sensitivity: 12 dB SINAD
|
0.25 uV
|
0.28 uV
|
Hum & Noise
|
-35 dB
|
-40 dB
|
|
Selectivity
|
<=60 dB
|
<=65 dB
|
Audio Distortion
|
<5%
|
<5%
|
|
IMD
|
60 dB
|
60 dB
|
Spurious & Harmonics
|
-70 dB
|
-70 dB
|
|
Spurious Response
|
60 dB
|
60 dB
|
Modulation
|
16K0F3E
|
11K0F3E
|
|
Image Response
|
60 dB
|
60 dB
|
||||
Squelch Opening
|
8 dB SINAD
|
8 dB SINAD
|
||||
Audio Output @ 10% dist.
|
500 mW
|
500 mW
|
||||
Signal Displacement
|
2 kHz
|
1 kHz
|
Operating Temperature
|
-30 to 60 C
|
Operating Bandwidth - VHF/UHF
|
26Mhz/ 20 Mhz
|
Channel Increments
|
2.5/ 6.25 Khz
|
Channel Spacing
|
25 kHz/ 12.5 Khz
|
Frequency Stability
|
+/- 2.5PPM
|
Standbuy Current
|
20 mA
|
Battery Life
|
>10hours
|
Dimensions
|
5.8"H x 2.5"W x 1.3"D
|
Receiver:
|
Wide
|
Narrow
|
Transmitter:
|
Wide
|
Narrow
|
|
Sensitivity: 12 dB SINAD
|
0.25 uV
|
0.28 uV
|
Hum & Noise
|
-35 dB
|
-40 dB
|
|
Selectivity
|
<=70 dB
|
<=65 dB
|
Audio Distortion
|
<5%
|
<5%
|
|
IMD
|
65 dB
|
65 dB
|
Spurious & Harmonics
|
-60 dB
|
-60 dB
|
|
Spurious Response
|
60 dB
|
60 dB
|
Modulation
|
16K0F3E
|
11K0F3E
|
|
Image Response
|
60 dB
|
60 dB
|
||||
Squelch Opening
|
8 dB SINAD
|
8 dB SINAD
|
||||
Audio Output @ 10% dist.
|
500 mW
|
500 mW
|
![]() Price: $
|

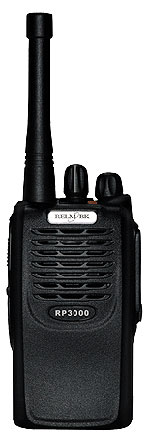

Your basic 16-channel VHF or UHF radio and much, much more. Small, tough, and loaded with functionality, including a built-in pager with siren and silent vibrate alerts, along with many other special features and options.
Beyond the basics in every way except cost, another shining example of More Radio for Your Dollar - The RELM Advantage. Twice the value, half the size.
|
![]() Price: $
|

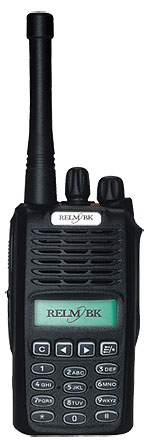

Fits in the palm of your hand, but the Relm/BK RP 3600 contains 256 programmable channels in 16 zones, 16 channels per zone! Ultra-clear reception, rock-solid reliability, housed in a rugged die-cast aluminum chassis. Packed with features and functions, including a built-in pager with siren and silent vibrate alerts, and a wide selection of practical options.
Programmable by keypad or PC, easy to use and easy to customize. Twice the value, half the size. That's The RELM Advantage again - More radio for Your Dollar.
|
